CNC Machining Gallery

Browse our collection of precision machining projects and manufacturing capabilities

Machining

High-precision CNC turning machine producing cylindrical shafts and bushings for industrial machinery

CNC Turning Operations

Precision cylindrical component manufacturing

CNC milling center creating complex industrial components with multi-axis capabilities

Multi-Axis Milling

Complex geometry machining operations

CNC lathe machine producing threaded components and precision shafts

Threading Operations

Internal and external threading

Precision turning operations creating shafts with tight tolerances

Shaft Manufacturing

High-precision shaft production

Machinist using a dial bore gauge to measure the internal diameter of a large cylindrical part on a lathe

Precision Internal Measurement

Quality inspection of internal tolerances using high-precision gauging tools during the turning process.

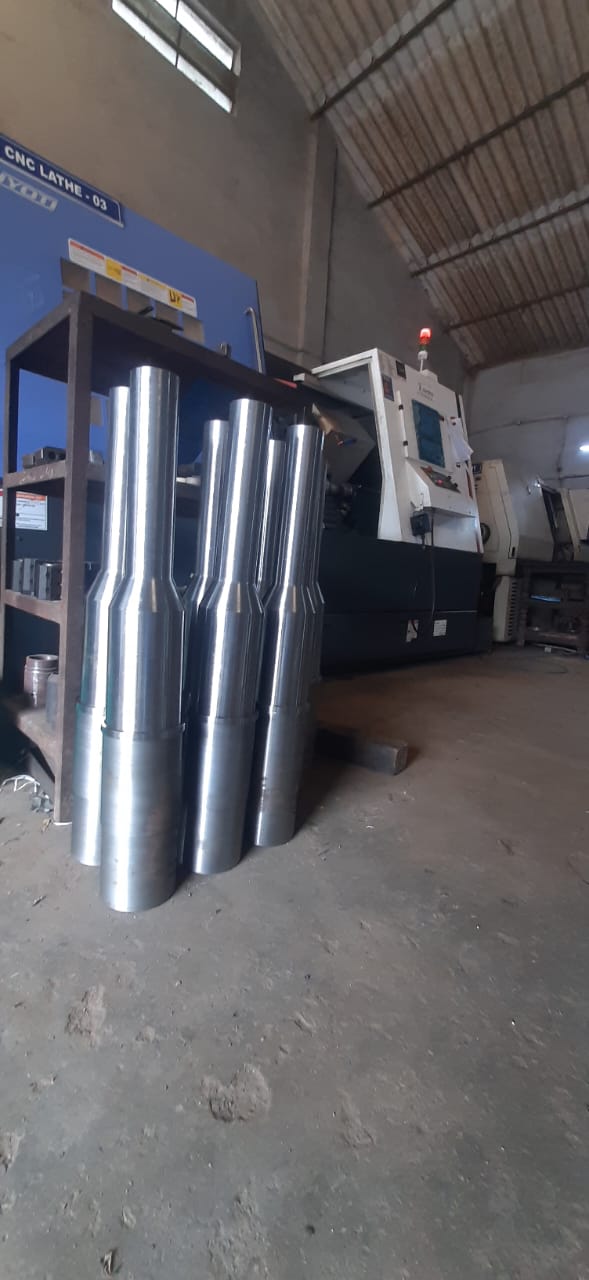

Large stepped shafts standing on a workshop floor next to a CNC lathe machine

Heavy-Duty Shaft Turning

Batch production of large-scale industrial shafts following precision CNC lathe operations.

Row of long T-head bolts with threaded ends protected by plastic mesh and secured with heavy hex nuts

Industrial Fastener Fabrication

Heavy-duty custom T-bolts manufactured for structural or machinery anchoring applications.

Horizontal row of identical precision-turned metal pins with center grooves

CNC Cylindrical Grinding

Mass-produced cylindrical components featuring uniform surface finishes and precise dimensional accuracy.

Machined circular housing component with six mounting lugs and a central bearing seat

Complex Housing Component

Finished industrial housing featuring multi-axis machining for bearing integration and mounting.

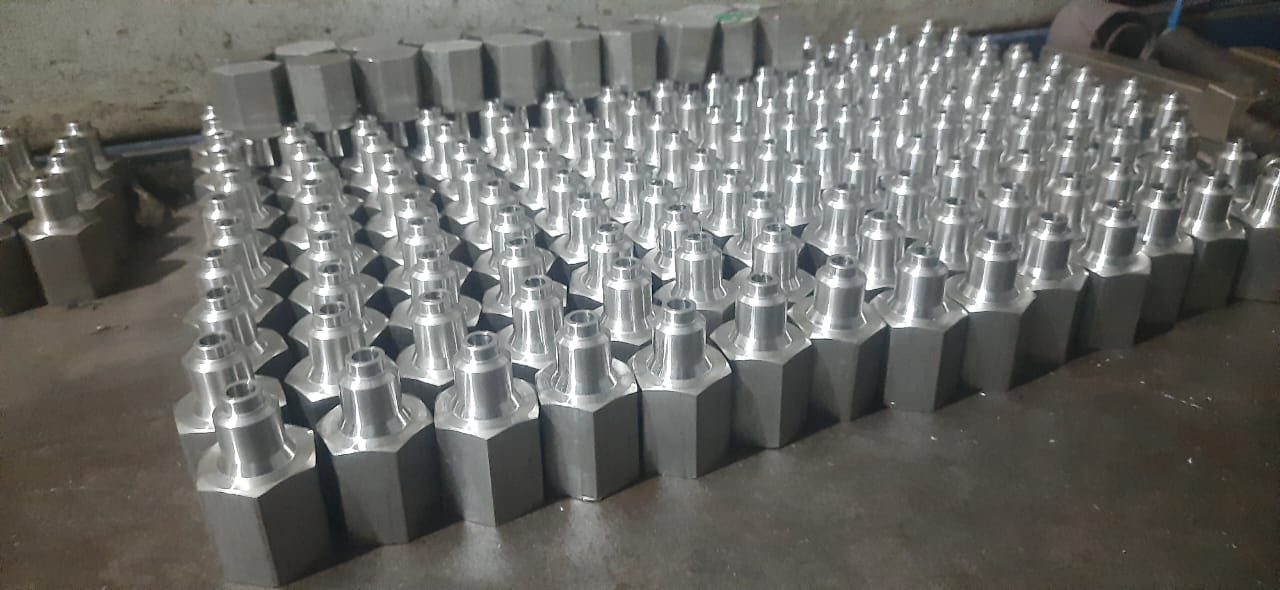

Large quantity of small hexagon-base nozzles or fittings arranged on a workbench

Small Part Batch Production

High-volume manufacturing of hexagonal fittings through automated CNC turning and milling.

Flat machined metal plate with a central hole and a circular pattern of six smaller holes

Precision Flange Plate

Custom plate machining featuring precise hole patterns for mechanical assembly.

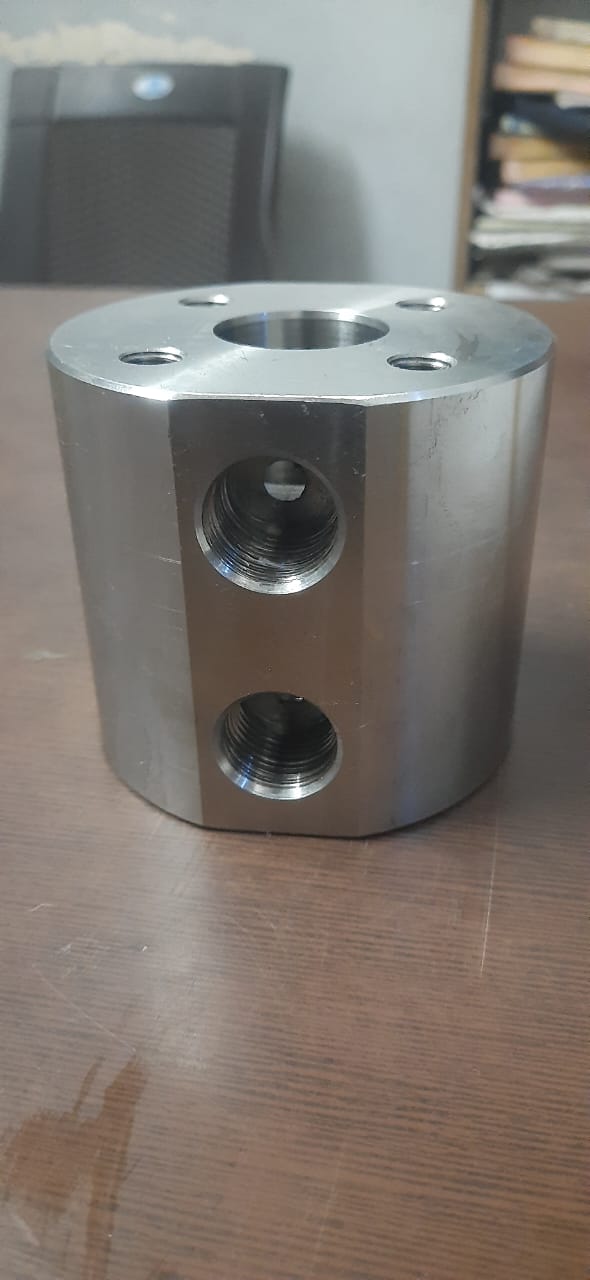

Cylindrical metal block with multiple threaded ports and mounting holes

Hydraulic Manifold Block

Precision drilling and tapping of a manifold block for fluid power systems.

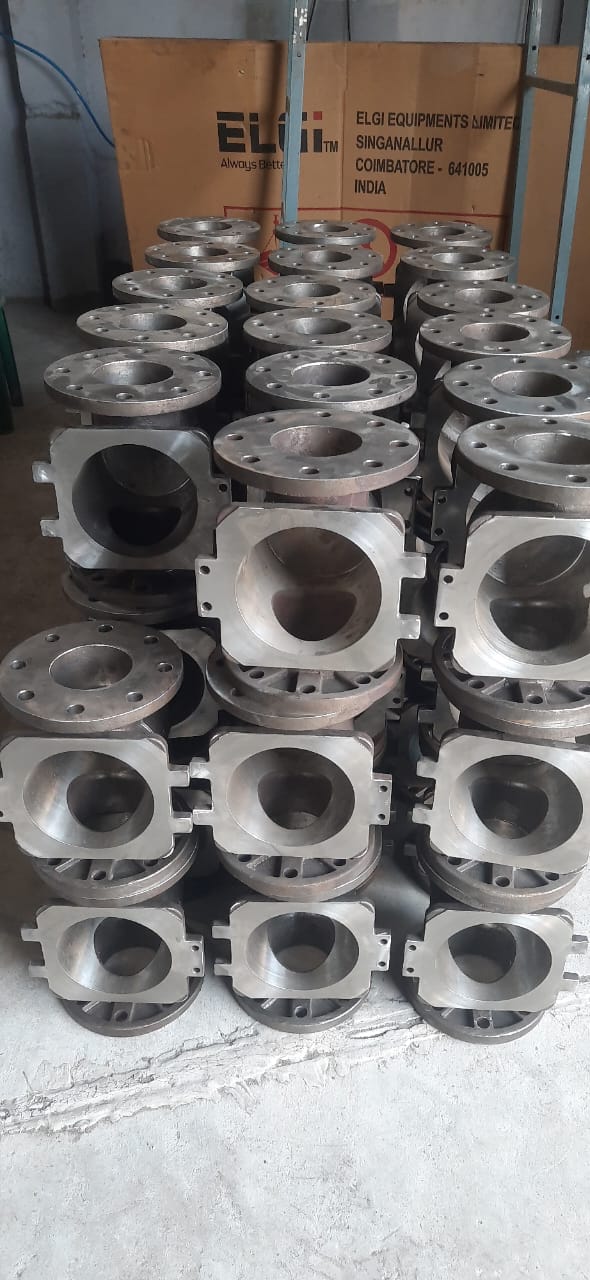

Stacked cast iron valve or pump bodies with machined flange faces and bores

Cast Component Machining

Secondary machining operations on raw castings to ensure flat mating surfaces and precise bores.

Two different precision-turned cylindrical parts with hole patterns on a wooden surface

Custom Component Fabrication

Finished custom-engineered parts showcasing variety in hole patterns and face machining.

A precision-turned multi-stepped steel shaft with laser-etched heat treatment specifications and part numbers

Stepped Drive Shaft

High-precision turning of C45N steel shafts featuring multiple diameters and traceable material markings.

A collection of cylindrical metal slugs with rounded ends and several shorter precision-faced steel caps

Radius-End Components

Custom machined cylindrical pins with spherical radius ends and high-finish end-caps for industrial assembly.

Production

Precision machined valve components for oil and gas industrial applications

Valve Components

Custom valve parts manufacturing

Finished precision components ready for quality inspection and assembly

Finished Components

Completed machined parts

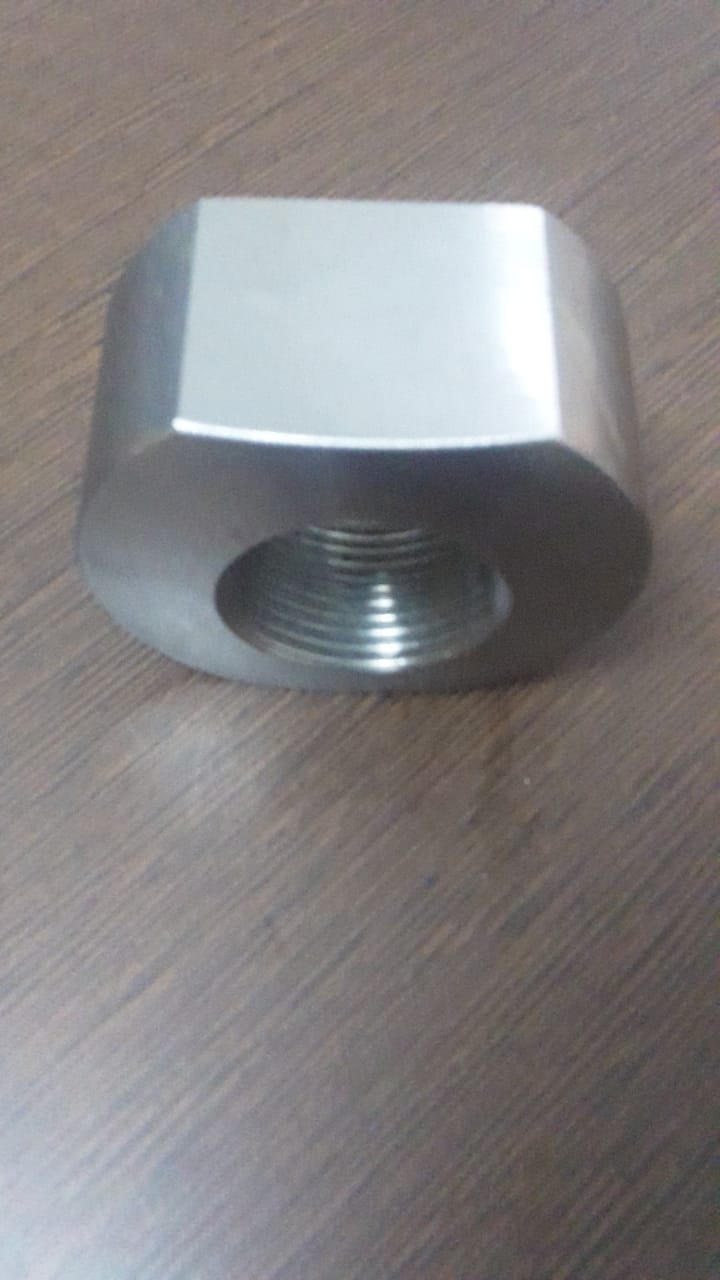

Custom manufactured industrial bushings and sleeves for heavy machinery

Custom Bushings

Precision bushing manufacturing

Custom fabricated industrial components for specialized applications

Custom Fabrication

Bespoke component manufacturing

Precision machined parts batch production for industrial machinery

Batch Production

High-volume manufacturing

Finishing

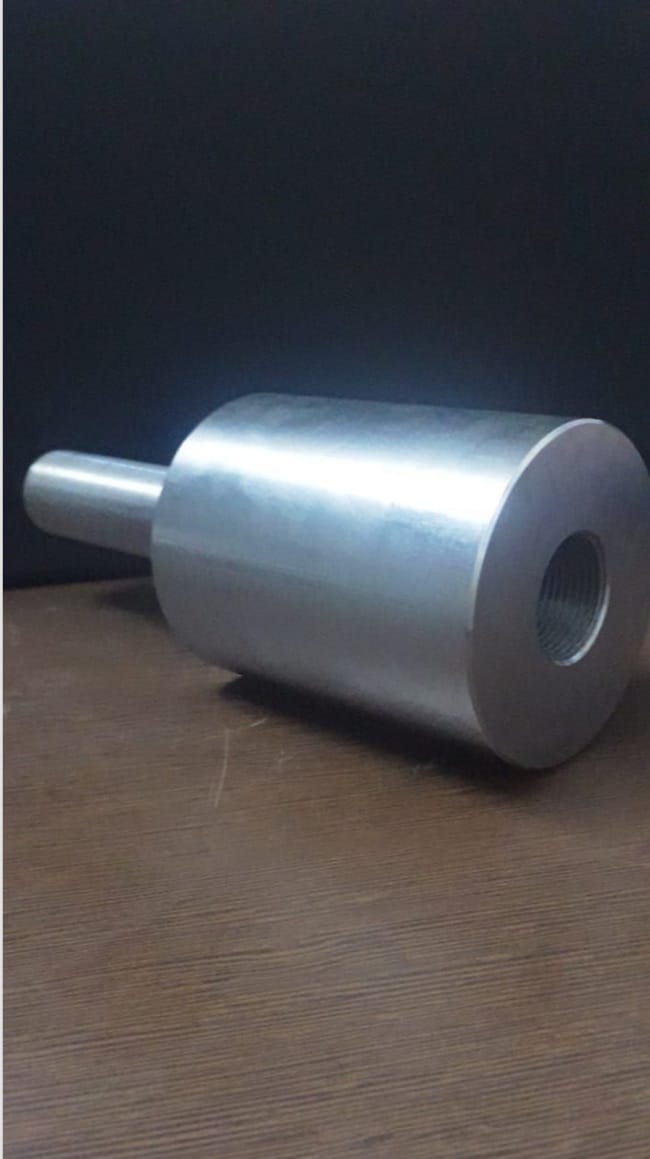

Surface finishing and polishing operations on automotive components

Surface Finishing

Polishing and deburring processes

Automotive

CNC machining center producing complex parts for automotive industry

Automotive Components

Engine and transmission parts

Quality

Quality control inspection using precision measuring instruments for dimensional accuracy

Quality Inspection

Dimensional measurement and verification

Heavy

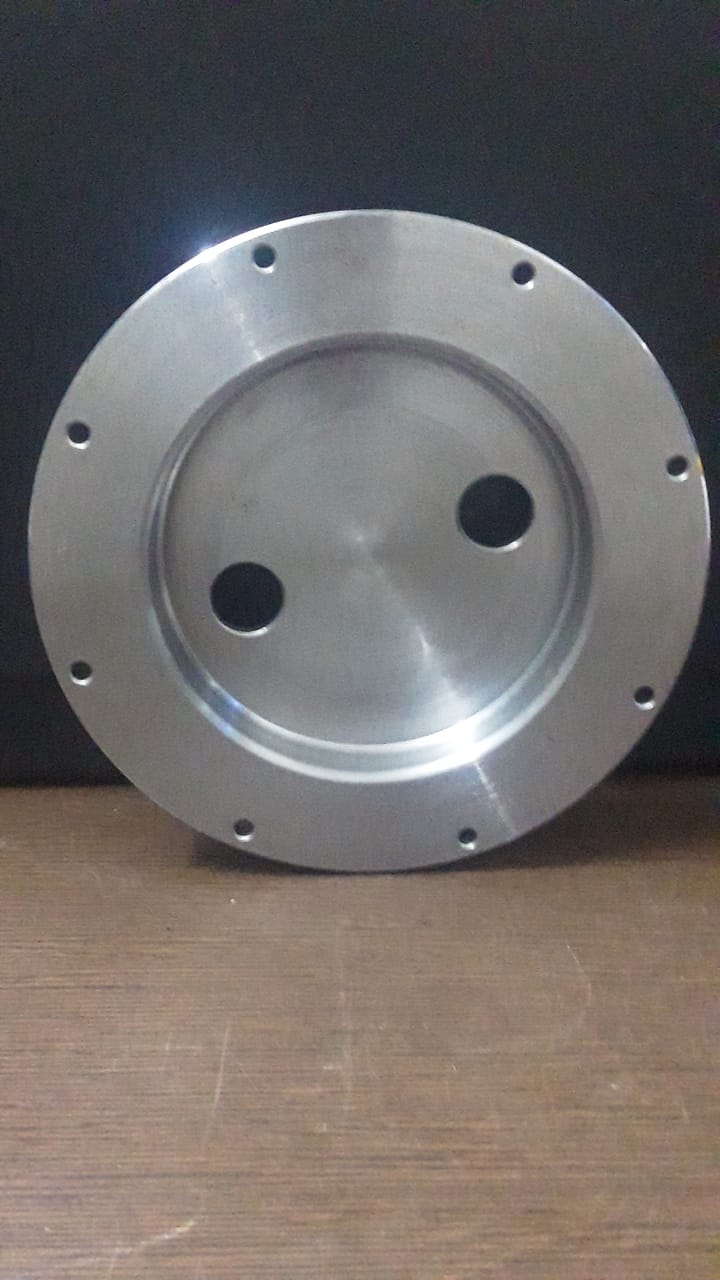

Heavy-duty machined components for mining and construction equipment

Heavy Machinery Parts

Large component manufacturing
